Marin

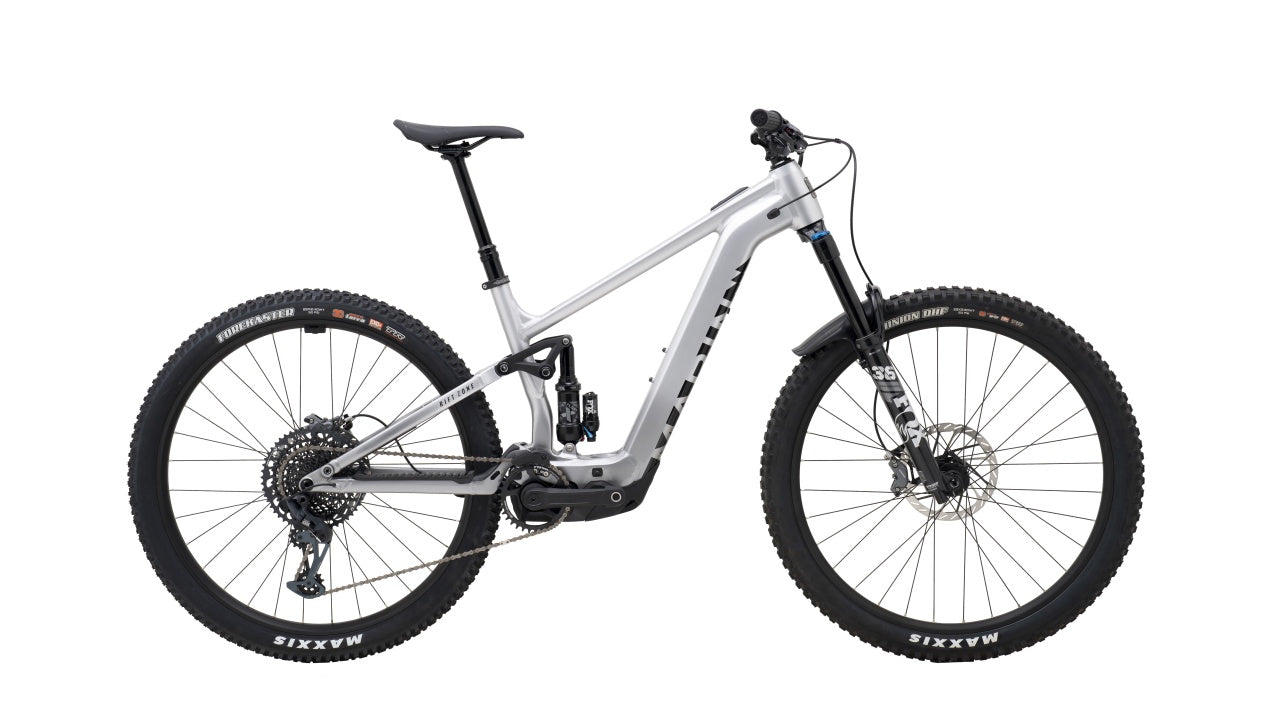

MARIN 25 RIFT ZONE EL 2 SM - SILVER/CHARCOAL FADE

MARIN 25 RIFT ZONE EL 2 SM - SILVER/CHARCOAL FADE

$8,999.00 NZD
$8,999.00 NZD
Sale Sold out
Tax included.

Specifications

Please note - specifications subject to change without prior notice.
01. FRAME All New Series 4 Alloy Lightweight E Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
02. FRONT SUSPENSION Fox 36 Performance, 150mm Travel, 29", 11Oxl 5 Kabolt, 42mm Offset
03. REAR SUSPENSION Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 21Ox55mm, 25xM8 Upper Mount, No Lower DU or Hardware
04. RIM Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible
05. HUB REAR Formula DC-711, 11Ox15, 6-Bolt, 32H
06. HUB FRONT Formula DCL-3482, 4 Sealed Bearings, 148x12, XO Driver, 6- Bolt, 32H
07. SPOKES 14g Black Stainless Steel
08. TIRES Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
09. DERAILLEUR REAR SRAM GX Eagle Lunar
10. DERAILLEUR FRONT 0
11. SHIFT LEVER SRAM GX Eagle Lunar MMX Mount
12. CRANKSET e*thirteen e*spec Plus, 160mm Length, 34T
13. MOTOR Bosch Performance Line SX, 55Nm torque
14. CHAIN SRAM NX Eagle
15. CASSETTE SRAM XG 1275 Eagle Cassette 10-52T
16. BRAKES FRONT SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor
17. BRAKES REAR SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor
18. BRAKE LEVERS SRAM Code Bronze Stealth
19. HANDLEBAR Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
20. STEM Marin CNC, 35mm Length, 35mm Bar Bore
21. GRIPS Marin Grizzly Lock On
22. HEADSET FSA Custom Headset, Adjustable HTA Design
23. SEATPOST TranzX, YSP39 1 x Remote, 34.9 Seatpost Diameter, Travel S = 1 50mm, M/L = 170mm, XL = 200mm
24. SADDLE Marin Speed Concept
25. PEDALS Marin MTB Plastic
26. BATTERY Bosch 400Wh Internal
27. DISPLAY Bosch BRC3100 Systems Controller
28. SWITCH Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
29. EXTRAS e*thirteen e*Spec Chainguide
30. EXTRAS Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Geometry

  S M L XL
Stack 618.74 632.33 641.4 645.93
Reach 430 460 490 520
Headtube Angle 65° 65° 65° 65°
Headtube Length 100 115 125 130
Seattube Angle 77° 77° 77° 77°
Seattube Length 400 420 430 460
Toptube Effective 572.85 605.99 638.08 669.12
BB Height 342 342 342 342
BB Drop 36 36 36 36
Chainstay 440 440 440 440
Wheelbase 1188.81 1225.15 1259.38 1291.49
Standover Height 674.75 687.74 691.98 699.2
Fork Offset 44 44 44 44
Seatpost diameter 34.9 34.9 34.9 34.9
Handlebar width 780 780 780 780
Stem length 35 35 35 35
Crank length 160 160 160 160
All lengths in millimeters
