Marin

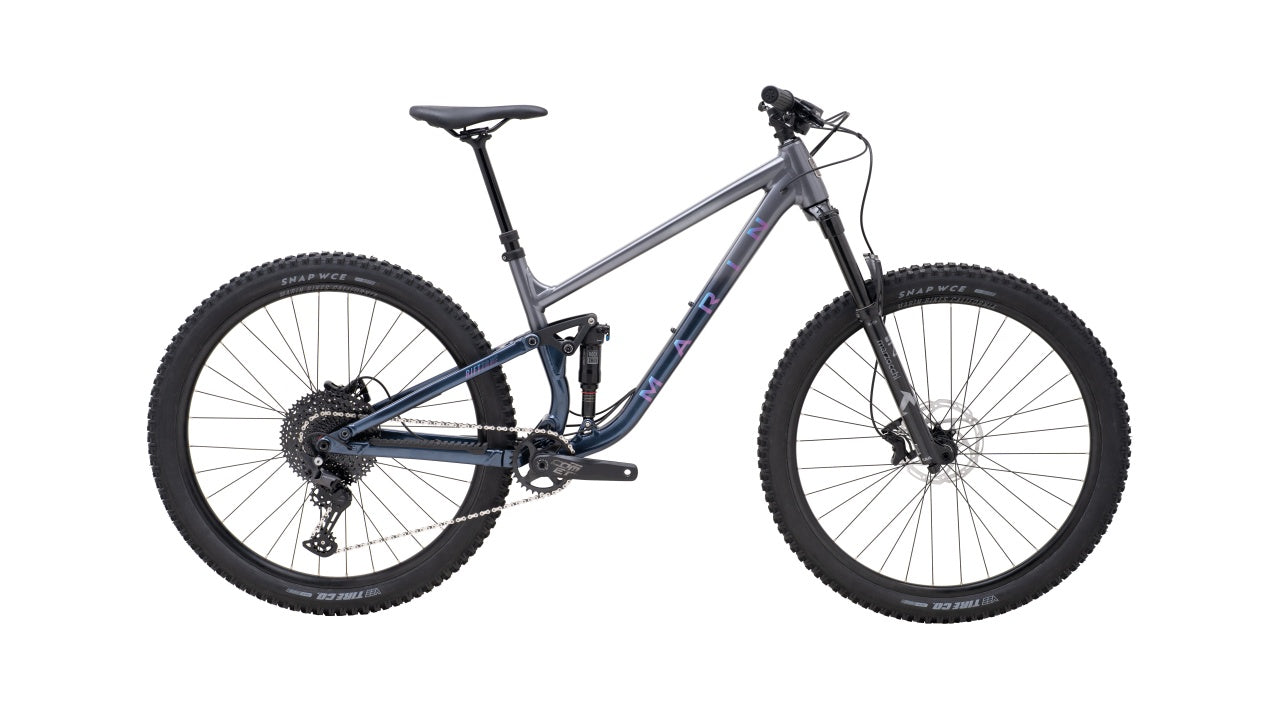

24 RIFT ZONE 2 29 MD - GREY

24 RIFT ZONE 2 29 MD - GREY

$3,499.00 NZD
$3,499.00 NZD
Sale Sold out
Tax included.
Size

Specifications

Please note - specifications subject to change without prior notice.
FRAME Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION Marzocchi Bomber Z2, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
REAR SUSPENSION RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware
RIMS Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
HUB, REAR Shimano FH-TC500, 148x12mm, Disc, HG Freehub Body
HUB, FRONT Shimano HF-TC500, 110x15mm, Centerlock, 32H
SPOKES 14g Black Stainless Steel
TIRES Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible
DERAILLEUR, REAR Shimano Deore, 12-Speed, SGS
DERAILLEUR, FRONT -
SHIFT LEVER Shimano Deore, 12-Speed, SL-M6100-R
CRANKSET FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET External Sealed Cartridge Bearing
CHAIN KMC X-12 Silver and Black
CASSETTE SunRace, 12-Speed, 11-51T
BRAKE, FRONT Tektro HD-M535 Hydraulic Disc, 180mm Rotor
BRAKE, REAR Tektro HD-M535 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS Tektro HD-M535 Hydraulic
HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5Âş Up, 9Âş Back
STEM Marin 3D Forged Alloy, 35mm
GRIPS Marin Grizzly Lock On
HEADSET FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST X-Fusion Manic, 1x Composite Remote, Size S 150mm Travel, Size MXL 170mm Travel, 30.9mm
SADDLE Marin Speed Concept
PEDALS -
EXTRAS Bolt-On Thru-Axle

Geometry

  XS (27.5) S (27.5) M (27.5) M (29) L (29) XL (29)
STACK 569.1 600.7 605.2 637.3 637.3 641.8
REACH 415 430 450 460 485 515
HEADTUBE ANGLE 65.5° 65.5° 65.5° 65.5° 65.5° 65.5°
HEADTUBE LENGTH 115 120 125 115 125 130
TOPTUBE EFFECTIVE 77° 77° 77° 77° 77° 77°
SEATTUBE ANGLE 330 390 400 400 425 430
SEATTUBE LENGTH 552.6 568.7 589.7 605 632.1 663.2
BB HEIGHT 339 339 339 343 343 343
BB DROP (REAR/FRONT) 35 35 35 35 35 35
CHAINSTAY 430 430 430 430 430 430
WHEELBASE 1147.8 1164.8 1186.9 1205.1 1234.4 1266.3
STANDOVER HEIGHT 661.7 677.8 687.8 691.2 701.7 700.5
FORK OFFSET 44 44 44 44 44 44
